DS-E1 optical phono cartridge & equalizer

The basic principle of the optical cartridge It's not a moving coil cartridge.

DS-El has a wire suspension mechanism which is the same design as DS Master 1 and DS-W2 and DS002 By implementing it, you realize high channel separation and stable music playback. Moreover, by arranging the position of the slit at the position close to the needle point, it is possible to retrieve information with higher freshness.

Like the more expensive DS Audio cartridges, the DS-E1 cartridge body is machined from aluminum and echoes their distinctive design for best optical performance. The DS 002 features an aluminum cantilever and Elliptical needle to accurately reproduce the music recorded on the vinyl record album.

The DS-El equalizer employs an operational amplifier at the heart of its amplification circuit, greatly reducing the number of components required. This also allows the DS-E1 to posses an extremely compact form factor, around 1/3 the size of the DS-002 equalizer, whilst still offering the world leading performance you have come to expect from DS Audio.

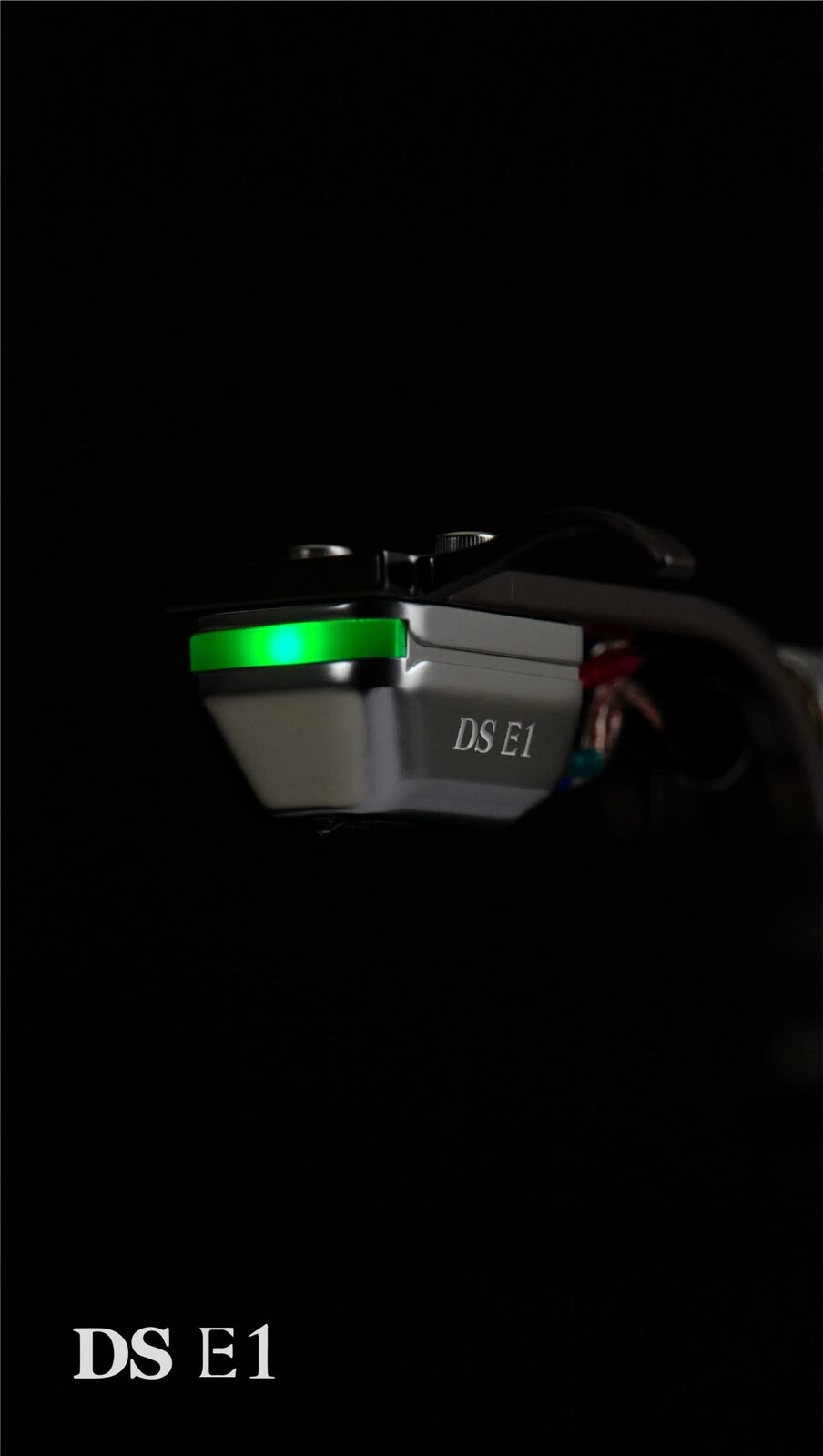

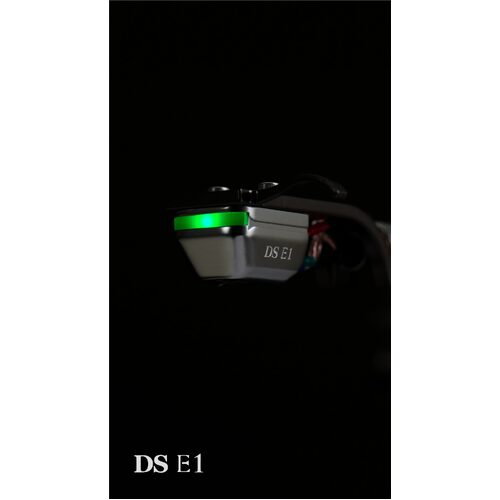

DS-E1 Optical Cartridge

Signal output

Photo-electric Conversion

Channel separation

24db more (1kHz)

Weight

8.1g

Output signal level

50mV more

Canti-lever

Alminum

Body material

Alminum

Needle pressure

1.6g~1.8g(1.7g is recommended)

Stylus

Elliptical Needle



DS-E1 Equalizer for Optical Cartridge

Output voltage

500mV(1kHz)

Output impedance

120Ω

Pre amp input impedance

More than 10kΩ

Input terminal

RCA terminal

Output terminal

RCA terminal (Switch two outputs with switch)

Size

W20cm×H7cm×D16cm

Weight

1.4kg
