A14 MkII Integrated Amplifier

Features: - 2 x 150 Watts of robust Class AB power, 4 Ohms - Moving Magnet Phono input for turntable connection - Wireless aptX™ and AAC Bluetooth - Texas Instruments premium 32-bit/384kHz Digital to Analog Converter - Supports MQA and MQA Studio - Certified Roon Tested

The A14MKII is the flagship model in the 14 Series family of Rotel products delivering 80 Watts of Class AB amplification into 8 ohm speakers powered by Rotel’s in-house manufactured, oversized toroidal transformer and an array of 4 high efficiency slit-foil bulk storage capacitors delivering an effortless acoustic performance.

A fully redesigned Digital to Analog circuit topology utilises a Texas Instruments 32-bit/384kHz DAC with exhaustive tuning and hand selection of all critical components delivering a fuller, richer and more balanced presentation of the music. Improvements to the power supply and amplifier gain stages further refine the audio whether you are listening to a big band orchestra or a solo vocalist.

Tone controls provide treble and bass adjustments in 1dB steps up to +/- 10dB personalising your experience for all music genres, moods and settings with a BYPASS mode eliminating unwanted noise and distortion.

The A14MKII supports your favourite sources including analog, digital, PC-USB with MQA, high-quality wireless aptX™ and AAC Bluetooth streaming and even a Moving Magnet Phono stage for vinyl fans.

The A14MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

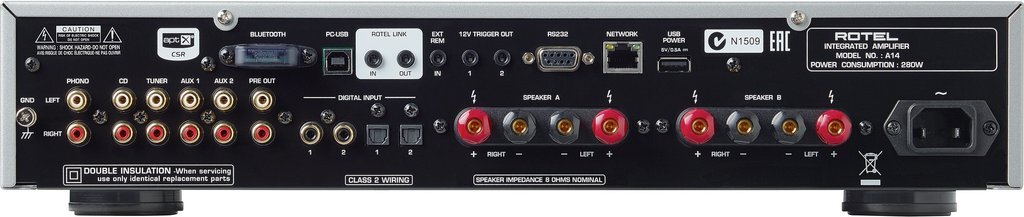

Control system integration is available utilising Ethernet, RS232, 12V-Trigger and remote IR connections.

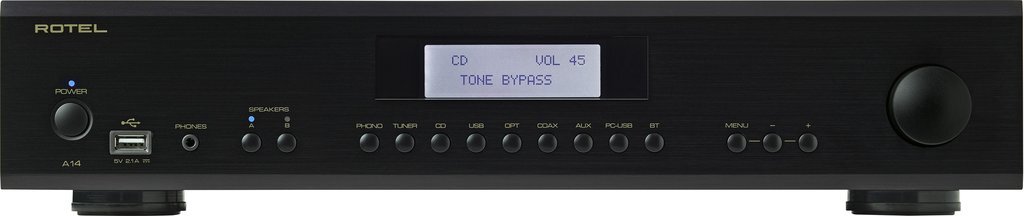

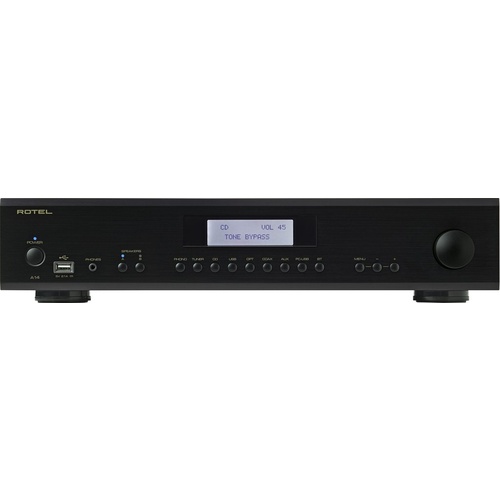

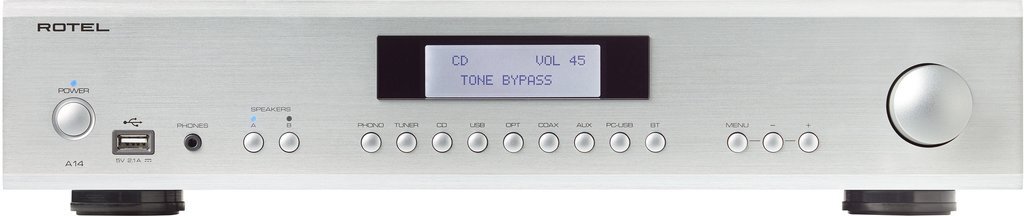

Dual 5-way speaker binding posts allow Zone 2 installations with relay-controlled selection of the A-B speaker outputs. The front panel graphic display includes a large volume indication and audio stream information.

The A14MKII is comfortable in any setting delivering countless hours of audio entertainment.

Amplification
Amplifier Class AB
Power 80

---

Analogue Inputs
3.5 mm None
Phono 1
RCA 4
XLR None

---

Analogue Outputs
Headphones 1
Pre 1
Sub None
Tape None

---

DAC
Resolution 32-bit/768kHz
Type AKM

---

Digital Inputs
Coaxial 2
Optical 2
PC-USB 1
