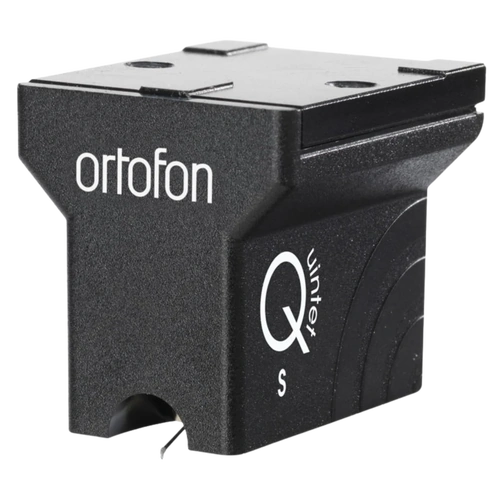

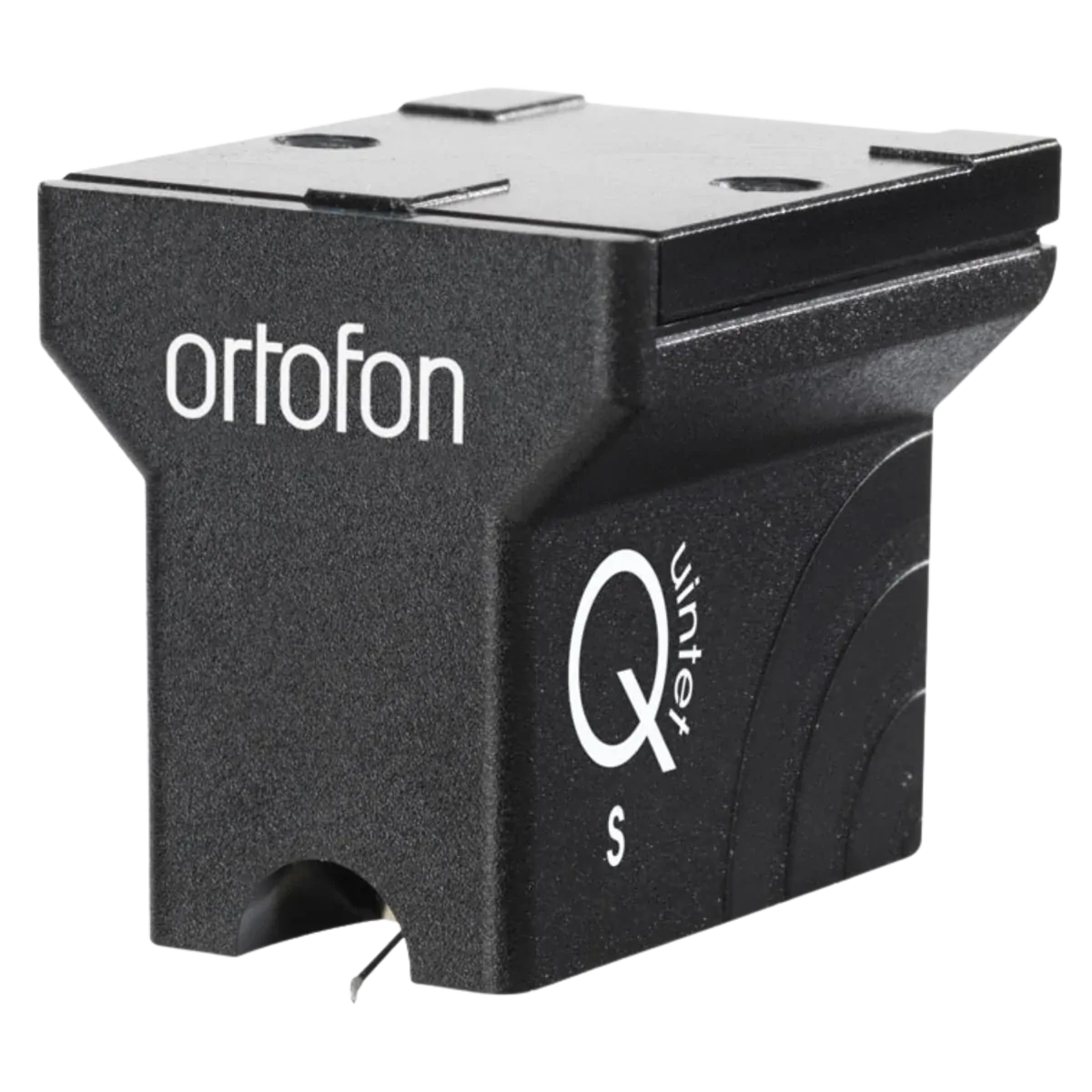

Quintet Black moving coil cartridge

Calculate Shipping

Customer collect from ESK QLD - $0.00 (ETA: 1 days)
After placing your order you can phone to make an appointment to collect from our premises in ESK QLD.

The Quintet Black is the best example of Quintet’s overall excellence.

The Quintet Black is graced with a Nude Shibata diamond, considered one of the best stylus profiles available, mounted on a high-performance Sapphire cantilever. The Shibata’s slim, highly polished profile allows an exceedingly wide contact area to the walls of the groove and ensures detailed and pure reproduction thoughout the spectrum, including even the most high frequency groove information.

The Quintet Black will be unfettered by musical genre and will give the closest approach within the Quintet series to Ortofon’s true accuracy in sound.

Technical data
Output voltage at 1000 Hz, 5cm/sec.	0.3 mV
Channel balance at 1 kHz	< 1.0 dB
Channel separation at 1 kHz	> 23 dB
Channel separation at 15 kHz	> 15 dB
Frequency range at - 3dB	20 - 25.000 Hz
Frequency response 20-20.000 Hz	+/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *)	80 µm
Compliance, dynamic, lateral	15 µm/mN
Stylus type	Nude Shibata on Sapphire cantilever
Stylus tip radius	r/R 6/50 µm
Tracking force range	2.1-2.5 g (21-25 mN)
Tracking force, recommended	2.3 g (23 mN)
Tracking angle	20°
Internal impedance, DC resistance	5 Ohm
Recommended load impedance	> 20 Ohm
Cartridge body material	ABS/Aluminium
Coil wire material	Aucurum
Cartridge colour	Black
Cartridge weight	9 g
*) Typical value

Retrieve your copy of the Quintet Series brochure here »

Retrieve your copy of the MC Quintet Series Userguide here »

(OQBKS)

SKU	OQBKS
Barcode #	5705796271133
Brand	ORTOFON
Shipping Weight	0.1200kg
Shipping Width	0.090m
Shipping Height	0.120m
Shipping Length	0.090m
Shipping Cubic	0.000972000m3
