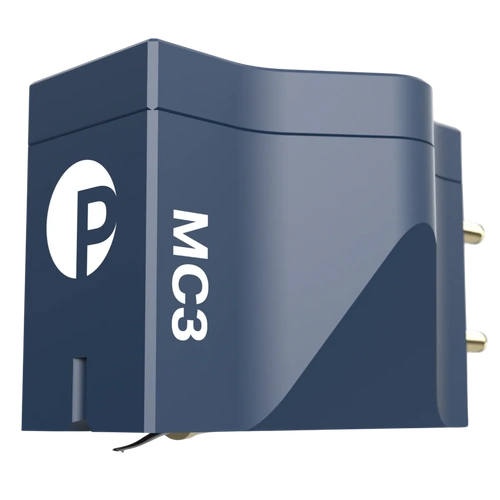

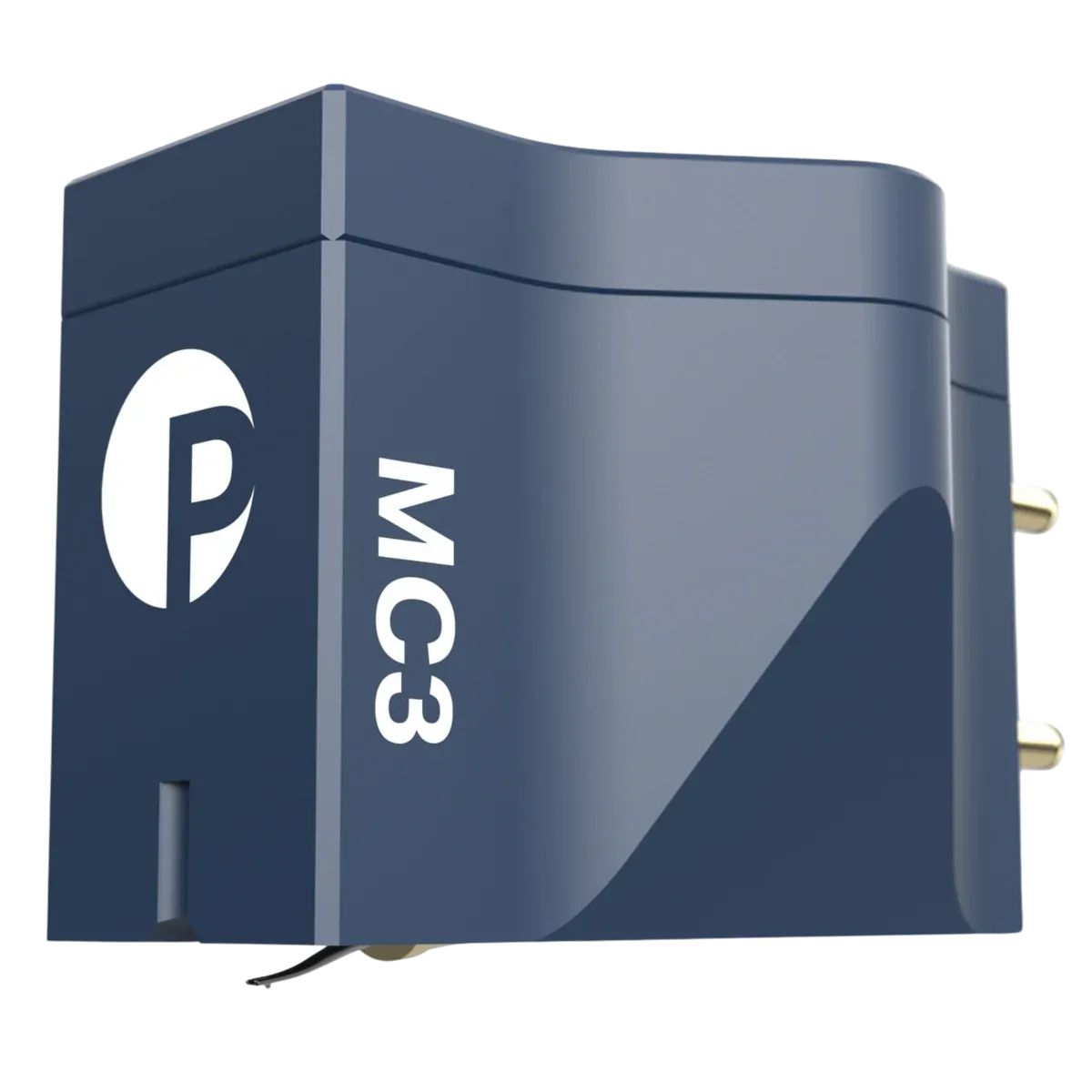

Pick It MC3

Moving Coil Cartridge

The Pick it MC3 is an all-purpose cartridge which delivers powerful and dynamic sound optimised for pop and rock, but also for big orchestral classics.

The Pick it MC3 uses a Pro-Ject specific "Hyper-Spherical" stylus to pick up the micro information of your vinyl records. The cantilever is cryogenically treated, which realigns the crystal structure and allows a smoother signal transmission. The cross coil is made of ARMCO pure iron with 6N linear crystal copper winding. It offers an output voltage of 0,4 mV and works best with a tracking force of 2 grams/mN.

Technical Specifications

• Cartridge principle: MC (Moving-Coil)
• Output voltage at 1 kHz: 0,4 mV (3,54 cm/sec)
• Channel separation at 1 kHz: >30 dB
• Tracking ability at 315Hz: 70 μm
• Dynamic compliance: 12 μm/mN
• Frequency response: 20 - 20 000 Hz +/- 1dB
• Stylus type: Hyper-Spherical
• Tracking force, range: 1,8 - 2,2 g (mN)
• Tracking force, recommended: 2,0 g (mN)
• Tracking angle: 20°
• Recommended load resistance: 100 - 220 Ω
• Cartridge weight: 9.6 g
