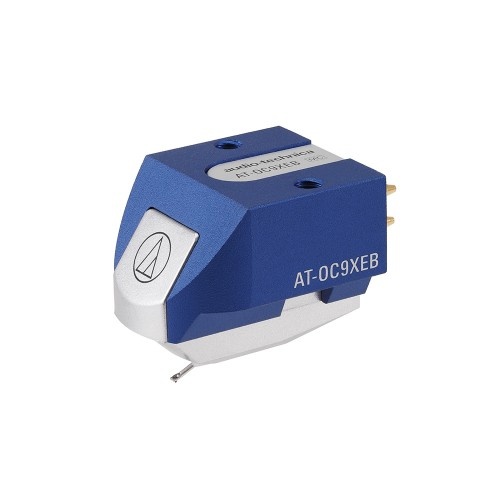

OC9XEB moving coil cartridge

Calculate Shipping

Customer collect from ESK QLD - $0.00 (ETA: 1 days)
After placing your order you can phone to make an appointment to collect from our premises in ESK QLD.

Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. An excellent affordable introduction to the characteristics that is moving coil.

Features bonded Elliptical stylus and aluminium cantilever
A neodymium magnet and pure iron yoke provides increased magnetic energy
Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible

Model	AT-OC9XEB
Mounting	1/2” centers / Threaded inserts
Frequency Response	20 - 30,000 Hz
Body Material	Aluminium
Channel Separation	25 dB (1 kHz)
Output Channel Balance	1.5 dB (1 kHz)
Output Voltage	0.32 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle	20 degrees
Vertical Tracking Force Range	1.8 to 2.2 g (standard 2.0 g)
Stylus Shape	Elliptical Bonded
Stylus Size	0.3 x 0.7 mil
Stylus Construction	Bonded round shank
Cantilever	Aluminium pipe
Coil Impedance	12 Ohms (1 kHz)
Coil Inductance	25 μH (1 kHz)
DC Resistance	12 Ohms
Static Compliance	20 x 10 – 6 cm / dyne
Dynamic Compliance	9 x 10 – 6 cm / dyne (100 Hz)
Terminal Pins	Brass
Wire Used for Coil	PCOCC (Copper by Ohno Continuous Casting process.)
Recommended Load Impedance	Min 100 Ohms
Weight	7.6 g
Dimensions	17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included	1 non magnetic screw driver, 1 brush; 2 washers, 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm 1 plastic protector

(ATOC9XEB)
