SPU Royal N lomc cartridge
SKU: cOSRN

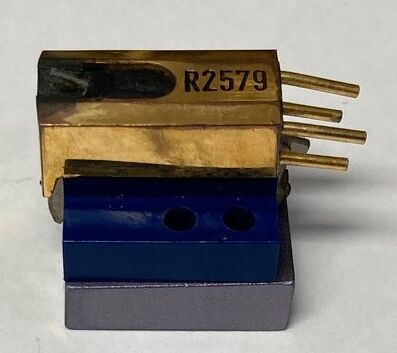

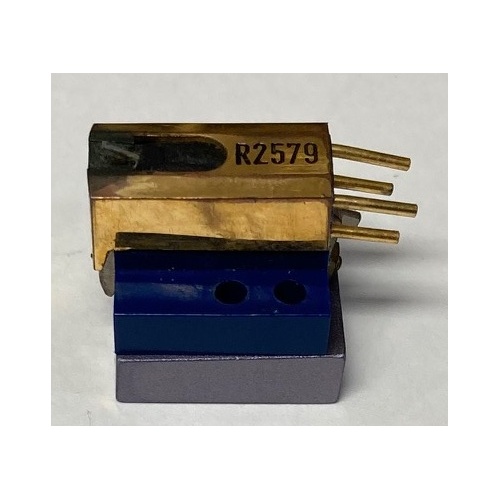

This cartridge has been inspected under microscope and we can confirm that the cantilever is not damaged but is showing some pitting and corrosion due to its age. The diamond looks to be in perfect condition with no sign of wear.
SPU Royal N
The SPU Royal N cartridge, with its half-inch adaptor, provides the ability to mount the unit on standard headshells, as well as in a wider range of tonearms.
Features
The SPU Royal N features Electrum coils, consisting of a gold and silver alloy, providing uncolored and precise transmission of armature movements, while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
The high purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.
Specifications
-
Channel balance at 1 kHz: 1 dB
-
Output voltage at 1 kHz, 5cm/sec: 0.2 mV
-
Channel separation at 1 kHz: 25 dB
-
Frequency response 20 Hz - 20 kHz: 1,5/- 0 dB
-
Tracking ability at 315 Hz: 60 µm
-
Compliance, dynamic, lateral: 8 µm/mN
-
Stylus type: Nude Ortofon Replicant 100
-
Stylus tip radius: r/R 5/100 µm
-
Tracking force range: 2.5-3.5 g (25-35 mN)
-
Tracking force, recommended: 3.0 g (30 mN)
-
Tracking angle: 20°
-
Internal impedance, DC resistance: 7 ohm
-
Recommended load impedance: 100 ohm
-
Coil wire material: Goldplated silver
-
Cartridge weight: 13 g
(cOSRN)
| SKU | cOSRN |
| Brand | ORTOFON |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.050m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000400000m3 |
