PRO-JECT AUDIO

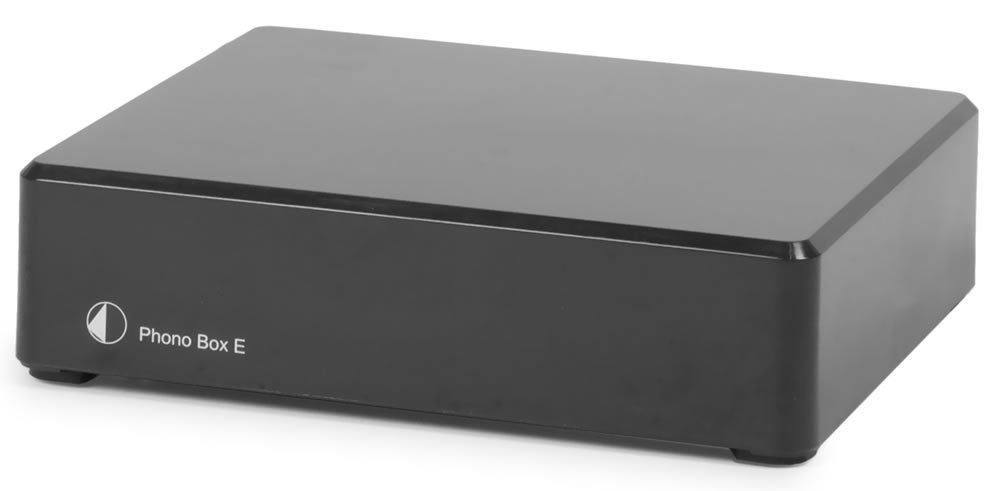

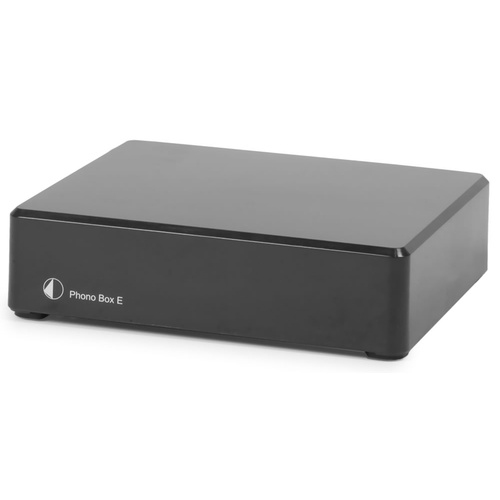

PRO-JECT Phono Box E

$139.00

SKU: PJPBE



Calculate Shipping

Phono Box E: Pure vinyl listening pleasure at an absolute bargain price!

Today, many amplifiers do not have a specific phono cartridge input. Phono Box E is an ideal phono preamplifier for these hifi systems. Phono Box E accepts MM cartridges and offers an audiophile music experience at an entry-level price. Advanced circuitry and SMD construction keep noise and distortion at a surprisingly low level. A built-in internal shielding and an outboard DC power supply leave no risk for external interference. Because of its small casing, Phono Box E can be placed near the turntable. Input and output sockets are gold-plated for preservation of quality. Phono Box E can be connected easily to a line-input (AUX etc) of your amplifier.

• Amplification and RIAA equalisation for MM cartridges

• Design principle inspired by Dr. Sykora

• SMD circuitry

• Special low noise components

• Internal metal shielding

• Small size allows installation close to record player

• Gold plated RCA connection sockets

• Outboard power supply included

• Black casing only



Technical specifications

Pro-Ject Phono Box E

Input impedance

47kohms

Input capacitance

120pF

Gain

40dB

Output voltage(typically)

500mV @ 1KhZ with 5mV input

Noise floor

88dB (A weighted)

THD

<0,04%

RIAA equalisation accuracy

20Hz –20kHz (+0,5/ -,02dB)

Input

1 pair RCA socket

Output

1 pair RCA socket

Outboard power supply

18V/500mA DC; 220 - 240V, 50Hz

Standby power consumption

< 1 watt

Power consumption

20mA DC

Dimension W x H x D (D with sockets)

120 x 32 x 100 (115)mm

Weight

250 g without power supply

(PJPBE)

SKU PJPBE
Brand PRO-JECT AUDIO
Shipping Weight 1.3000kg
Shipping Width 0.300m
Shipping Height 0.090m
Shipping Length 0.180m

1 Year
