2M Black cartridge
SKU: O2MBK
ONLY 1 AVAILABLE AT THE DISCOUNTED PRICE

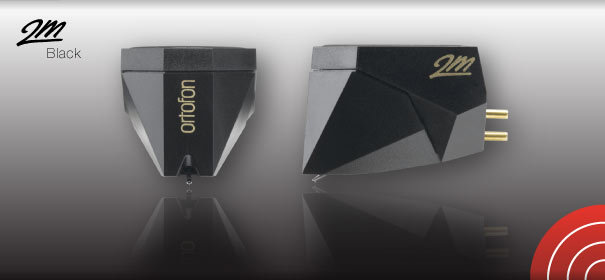

The 2M Black is the new moving magnet flagship from Ortofon. The 2M black is graced with a Shibata diamond stylus - the same diamond as on the acclaimed MC Jubilee. Its slim, highly polished profile allows an exceedingly wide contact area to the groove walls and ensures notably detailed reproduction throughout the spectrum, including even the most high frequency groove information.
2M Black technical data
|
Output voltage at 1000 Hz, 5cm/sec. |
5 mV |
|
Channel balance at 1 kHz |
1 dB |
|
Channel separation at 1 kHz |
26 dB |
|
Channel separation at 15 kHz |
15 dB |
|
Frequency range at - 3dB |
20-31.000 Hz |
|
Frequency response |
20-20.000 + 2 / - 0 dB |
|
Tracking ability at 315Hz at recommended tracking force |
80 µm |
|
Compliance, dynamic, lateral |
22 µm/mN |
|
Stylus type |
Nude Shibata |
|
Stylus tip radius |
r/R 6/50 µm |
|
Tracking force range |
1,4-1,7g (14-17 mN) |
|
Tracking force, recommended |
1,5 g (15 mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
1,2 kOhm |
|
Internal inductance |
630 mH |
|
Recommended load resistance |
47 kOhm |
|
Recommended load capacitance |
150-300 pF |
|
Cartridge colour, body/stylus |
Black/Black |
|
Cartridge weight |
7,2 g |
|
Replacement stylus unit |
2M Black |
(O2MBK)
| SKU | O2MBK |
| Brand | ORTOFON |
| Shipping Weight | 0.1200kg |
| Shipping Width | 0.090m |
| Shipping Height | 0.090m |
| Shipping Length | 0.120m |
