GARROTT

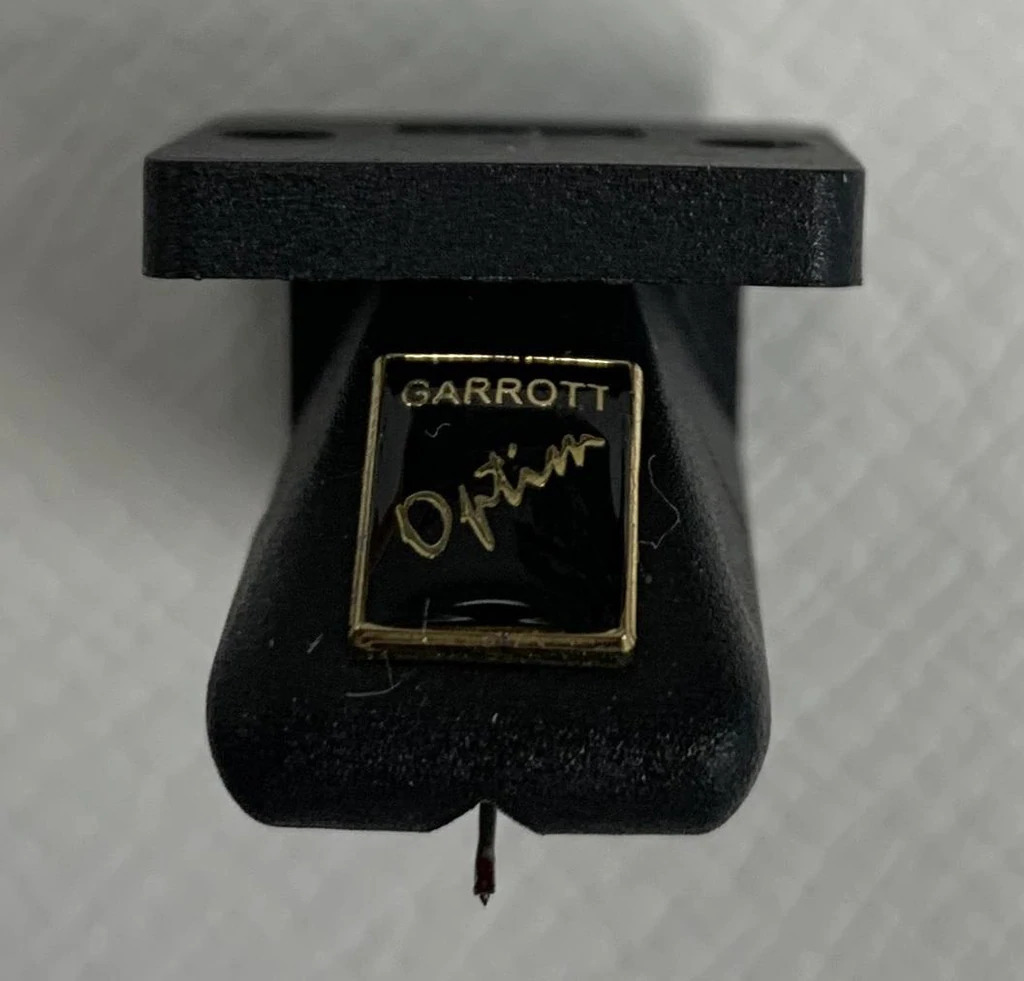

Optim Series 3 Jade mm phono cartridge

$799.00

SKU: GO3J

In stock (Mar 2022)


Calculate Shipping

The Garrott Optim S3 is the fruition of the "dynamic coil" principal pioneered by Garrott Brothers. This design allows sonic agility, focus and trackability previously only found in the best moving coil designs.

The Garrott Optim S3 is the latest and best illustration of the merits of the Garrott family of Dynamic Coil cartridges, gives a refined yet incredibly detailed reproduction.

This will surprise and delight even the most steadfast moving coil fanatics.

In essence, many cartridges suffer the effects of excessive damping of the complex signals which they are expected to reproduce.  This is purposely done in an attempt to control excessive high frequency brightness and distortion artifacts inherent in the mechanics of the stylus/record interface.

Unfortunately, over-damping also results in quite serious loss of musical dynamics and leaves a legacy that result in dull and unconvincing reproduction.  This is especially noticeable in the upper bass to lower midrange areas that contain the body and 'feeling' of the music. GARROTT Optim S3 cartridges have been designed such that minimal damping of the mechanical interface is needed and can be applied in a graduated way such that musical content is retained unimpaired.

With careful balance of moving parts results in superior tracking of even significantly worn record grooves, providing to the listener full bodied and powerful yet highly detailed reproduction that has not previously been achieved with affordable cartridges.  Indeed previous attempts at reaching this level of performance have usually done so at the expense of quite complex setup procedures and/or excessive tracking weights and consequent record wear.

We are pleased to be able at last to offer lovers of quality analogue sound reproduction a range of inexpensive and easy to live with cartridges that will reveal hitherto unrealised performance from your carefully preserved record collection.  Previously this level of performance has only been approached by the most expensive moving coil cartridges.  We are confident that you will be delighted with your purchase.

Specifications:

Optim S3 Jade
DIAMOND STYLUS Garrott Elliptical
FREQUENCY RESPONSE 20Hz - 20KHz +/- 3dB
CHANNEL SEPARATION 26dB (typical) at 1KHz
COMPLIANCE VERT/LAT Approx. 16/24 um/mN
OUTPUT VOLTAGE 6.5mV @ 3.54cm/sec
TRACKING FORCE 1.5-2.0 Grams (1.7 nominal)
INPUT IMPEDANCE 47 k/Ohm
CARTRIDGE WEIGHT 6.7 Grams



Brochure:

(GO3J)

SKU GO3J
Brand GARROTT
Shipping Weight 0.0600kg
Shipping Width 0.010m
Shipping Height 0.003m
Shipping Length 0.007m

1 Year Warranty
