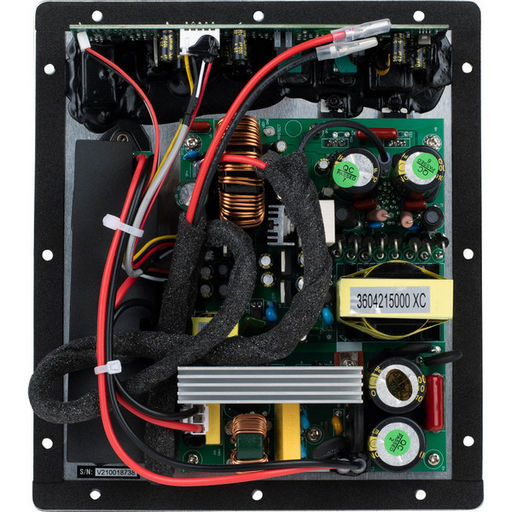

300W subwoofer plate amplifier

The Dayton Audio SPA300-D high-efficiency subwoofer plate amp packs big-amp features into a compact chassis that is ideal for installation into cabinets that can't accommodate bulky old-style amps.
Size: 182x54x205mm.


• 300W RMS Output @ 4ohms.
• Switchable 6dB @ 30Hz bass boost.
• Class-D output stage for highly efficient, well defined output.
• Manual and Auto on/off modes for compatibility with any automated system.
• Variable gain, crossover point and switchable phase controls optimise room integration.
• Switchable 120/240V input voltage.
• USB power outlet allows you to attach a Dayton Audio WLS system to the USB output and enjoy a wireless connection from your stereo system.
• Dayton Audio 5 year warranty.








•
•
•
•
• Channels: 1
  Power Handling (RMS): 300 Watts
  Power Handling (MAX): 600 Watts
  Frequency Response: 20 - 200Hz
  Input Sensitivity: 200 mV
  SNR, A-Weighted: 101 dB
  Total Harmonic Distortion: <1.5%
  Inputs: 1
  Power Requirements: 115 - 230 VAC
  Power Consumption: 300 Watts
  Dimensions: 182x54x205mm
  Weight: 1kg
