2M Silver cartridge

This unit is in "as new" condition, but without retail packaging.

2M Silver

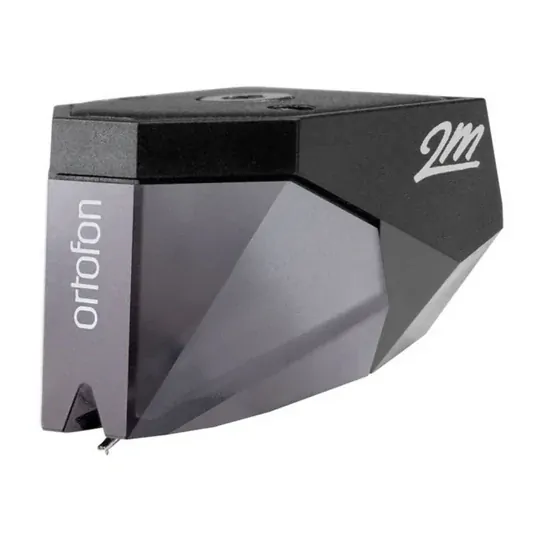

The Ortofon 2M Silver phono cartridge is an OEM-model that takes most of the characteristics of the 2M Red cartridge. The 2M Silver's special feature is silver-plated copper coils, the same coil wire material as in the 2M Bronze and 2M Black models, with a reduced number of windings.

The 2M Silver will be an upgrade compared to the 2M Red due to a special rubber suspension and silver-plated copper wire material.

2M Silver Technical data

Output voltage 5.5 mV
Channel separation >25dB @ 1kHz
Compliance dynamic/lateral 20/20 µm/mN
Frequency response - 20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force *) - 70 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Elliptical
Stylus tip radius - r/R 8/18 µm
Equivalent stylus tip mass - 0.5 mg
Tracking force range - 1.6-2.0 g (16-20 mN)
Tracking force, recommended - 1.8 g (18 mN)
Tracking angle - 20°
Internal inductance 700 mH
Recommended load resistance 47 kOhm
Cartridge colour, body/stylus  -  Black/Silver
2M standard and 2M Verso cartridges weight  -  7.2 g
*) Typical value

Replacement stylus unit  -  2M Silver (interchangeable with 2M Red and 2M Blue)
