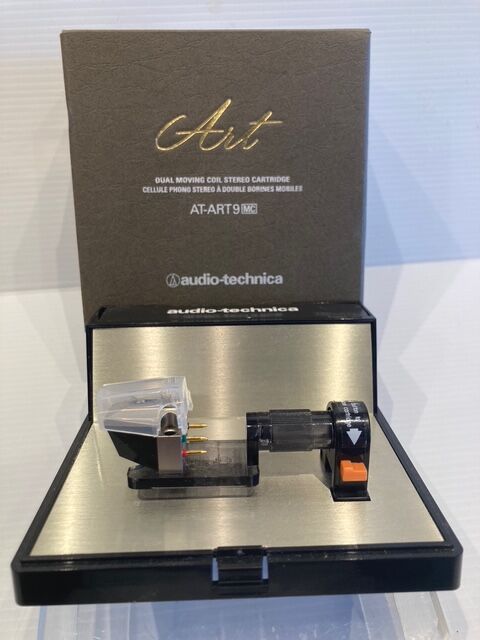

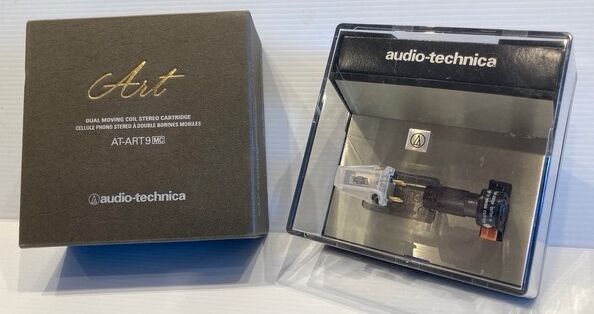

ART9 Flagship Moving Coil Cartridge
Retipped at the Garrott Lab
SKU: shART9
This unit is in like-new condition and has been re-tipped at the Garrott Lab with a Vital line contact diamond.

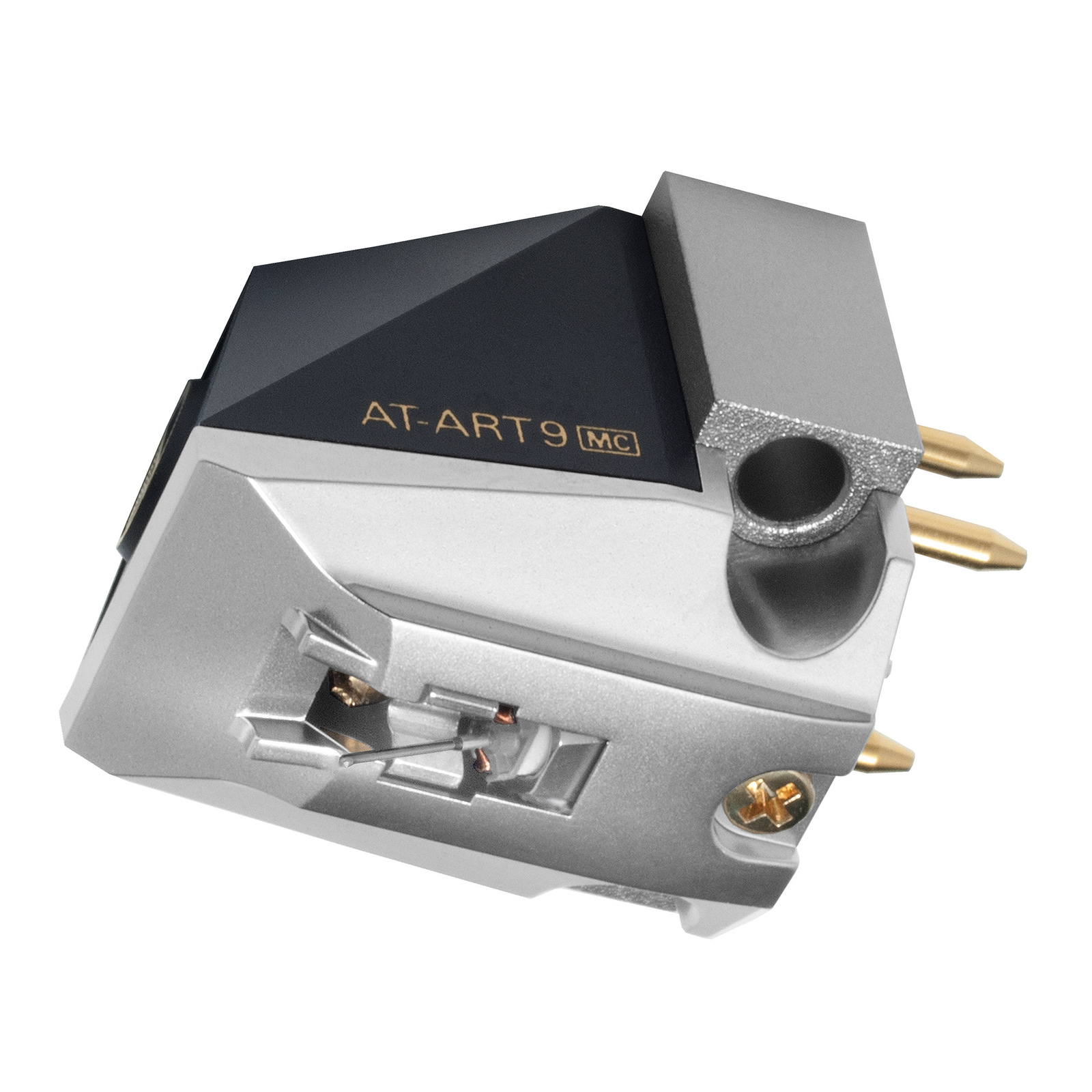

The AT-ART9 is Audio-Technica’s flagship moving-coil cartridge. Combining the craftsmanship, artistry and leading-edge engineering derived from the AT50ANV, AT-ART7 and AT-OC9/III cartridges, the AT-ART9 employs a vibration system and magnetic circuit that are the best-ever within the series thus resulting in exquisitely transparent and naturally complete sound quality. It is so startlingly honest that your ears convey to your mind and it comes to a singularly quick conclusion – this is real music at its best. Just like the body knows real sugar from processed substitute.
Features
- Its new magnetic circuit design adopts permendur yoke and neodymium magnet for dramatically increased magnetic energy, extremely low noise and improved bass response.
- Special line contact stylus with tip curvature radii of 40μm × 7μm adopted in AT50ANV and solid boron cantilever with a 0.26 mm diameter allow accurate transfer of music signals from the stylus tip to the generating coil.
- Dual moving coil for high separation and wide response.
- Hybrid body inherited from the AT-ART7 cartridge design to suppress unwanted parasitic and deleterious resonances. The housing is made of machined aluminum materials to dissipate parasitic resonances for unimpeded sound quality and clarity.
- PCOCC coil wiring for direct and pure signal transmission.
- High-quality brass screws for headshell attachment offers the best match for optimal sound quality.
Specifications
Type |
Magnetic Core Moving Coil |
Frequency Response |
15 to 50,000 Hz |
Channel Separation |
30 dB (1 kHz) |
Channel Balance |
0.5 dB (1 kHz) |
Coil Impedance |
12 W (1 kHz) |
DC Resistance |
12 W |
Tracking Force |
1.6 to 2.0 g (standard 1.8 g) |
Vertical Tracking Angle |
23 degrees |
Recommended Load Impedance |
Min 100 W |
Coil Inductance |
25 mH (1 kHz) |
Static Compliance |
35 x 10 – 6 cm / dyne |
Dynamic Compliance |
18 x 10 – 6 cm / dyne (100 Hz) |
Output Voltage |
0.5 mV (at 1 kHz, 5 cm/sec) |
Stylus Shape |
Special Line Contact Stylus |
Cantilever |
0.26 mm Ø solid boron |
Stylus Construction |
Nude square shank |
Mount |
1/2” centers |
Dimensions |
17.3 (H) x 17.0 (W) x 25.6 (L) mm |
Weight |
8.5 g |
Accessories |
1 non magnetic screw driver; 1 brush; 2 washers; 2 x 12 mm mounting screws; 2 Nuts; 2 x 18 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires (AT6106) |
(shART9)
SKU | shART9 |
Barcode # | 0713179743738 |
Brand | AUDIO TECHNICA |
Shipping Weight | 0.2200kg |
Shipping Width | 0.110m |
Shipping Height | 0.050m |
Shipping Length | 0.110m |
Shipping Cubic | 0.000605000m3 |
