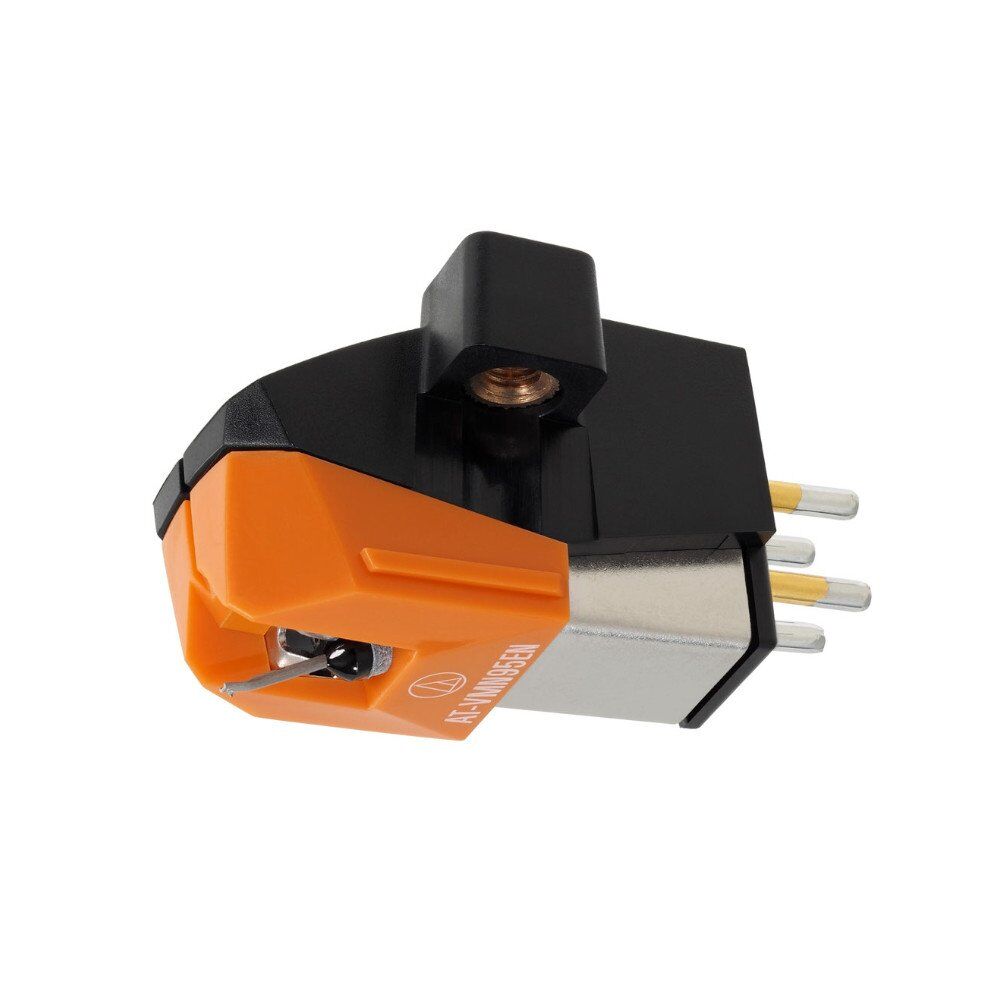

AUDIO TECHNICA VM95EN cartridge

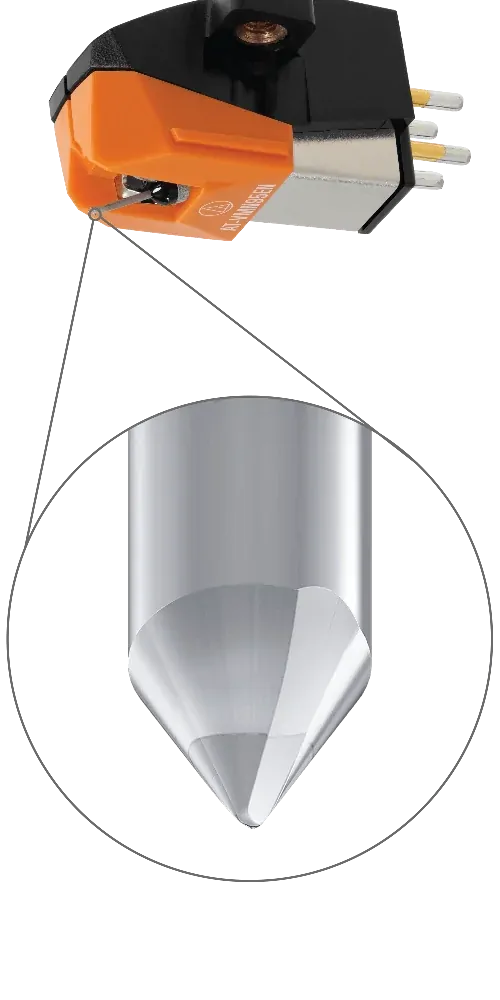

This VM95 Series cartridge with 0.3 x 0.7 mil elliptical nude stylus fits half-inch mount turntables. The cartridge offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Specifications

Cartridge & Stylus
Frequency Response	20 - 23,000 Hz
Channel Separation	22 dB (1 kHz)
Vertical Tracking Angle	23°
Vertical Tracking Force	1.8 to 2.2g (2.0g standard)
Stylus Construction	Nude Round Shank
Recommended Load Impedance	47,000 Ω
Coil Impedance	3.3 kΩ (1 kHz)
DC Resistance	485 Ω
Coil Inductance	550 mH (1 kHz)
Output Voltage	3.5 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance	2.0 dB (1 kHz)
Stylus Shape	Elliptical
Cantilever	Aluminium Pipe
Static Compliance	20 x 10 – 6 cm / dyne
Dynamic Compliance	7 x 10 – 6 cm / dyne (100 Hz)
Mounting	1/2” centres
Cartridge Weight	6.1g
Dimensions	17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included	Two 11 mm installation screws; Two 8 mm installation screws; Two washers Non-magnetic screwdriver
Model	AT-VM95EN
Recommended Load Capacitance	100-200 pF
Replacement Stylus	AT-VMN95EN
Stylus Size	0.3 x 0.7 mil
Type	VM Stereo Dual Magnet
Wire Used for Coil	T.P. Copper

(VM95EN)

SKU	VM95EN
Brand	AUDIO TECHNICA
