AUDIO TECHNICA

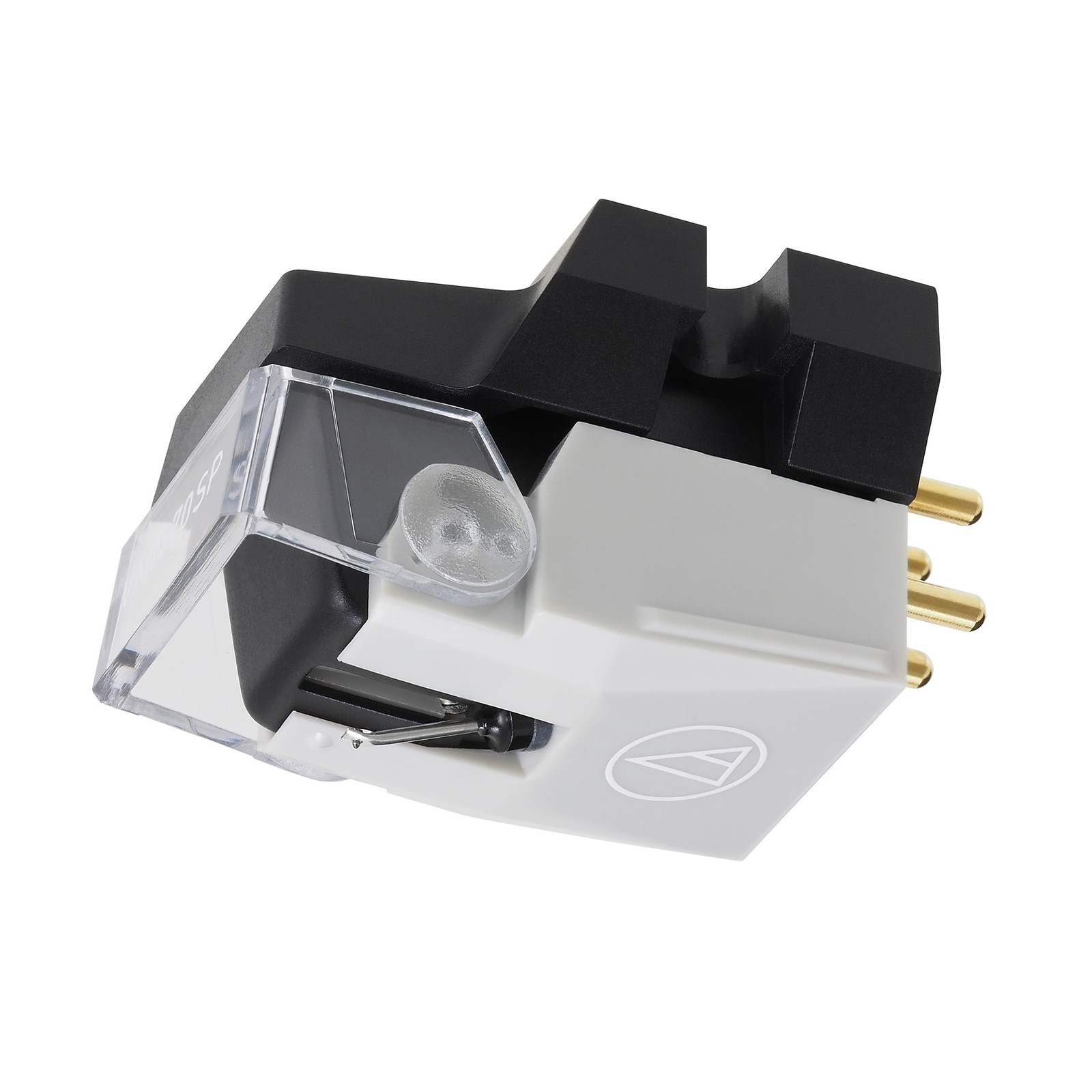

VM670SP Moving Magnet Mono Cartridge

For shellac 78s & phonograph records

$289.00

SKU: VM670SP



Calculate Shipping



Pickup from Esk QLD - $0.00 (ETA: 1 days)
Once you have placed your order please phone to make an appointment to collect.

Dual Moving Magnet Mono Cartridge for Shellac or Phonograph records

  • Conical Bonded (3mil) stylus
  • VM type dual magnet system
  • Para-toroidal coils improve generating efficiency
  • Aluminium cantilever
  • Mono body terminating left and right channels reduces surface noise
  • Durable low resonance polymer housing
Type VM Type
Mounting 1/2” centres
Frequency Response 20 - 20,000Hz
Output Voltage 3.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle 23˚
Vertical Tracking Force Range 4.5 – 5.5g (5.0g standard)
Stylus Shape Conical Bonded (3mil)
Stylus Size 3.0 mil
Stylus Construction Bonded Round Shank
Cantilever Aluminium Pipe
Coil Impedance 1,400Ω (1kHz)
Static Compliance 15 x 10-6 cm/dyne
Dynamic Compliance 2.0 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance 47,000Ω
Recommended Load Capacitance 100 – 200pF
Weight 6.4g
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus VMN70SP
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2

(VM670SP)

SKU VM670SP
Barcode # 4961310137618
Brand AUDIO TECHNICA
Shipping Weight 0.1000kg
Shipping Width 0.080m
Shipping Height 0.110m
Shipping Length 0.050m
Shipping Cubic 0.000440000m3
