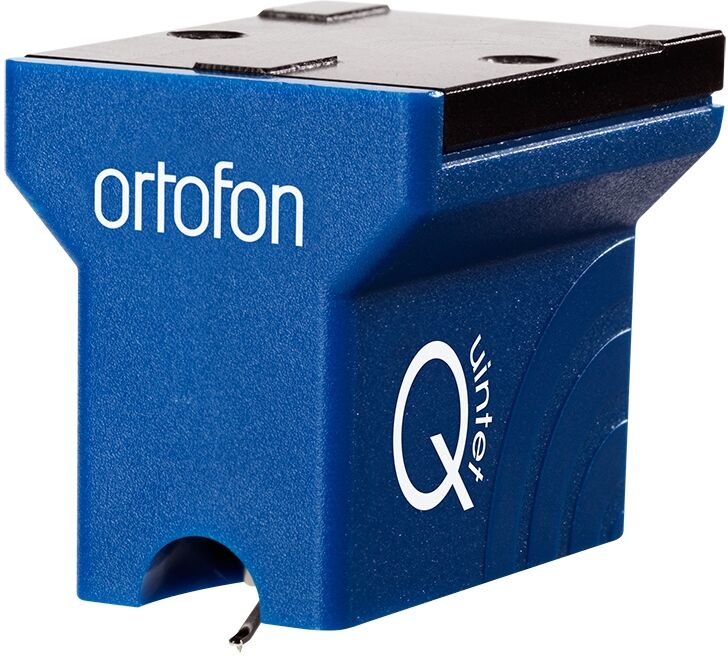

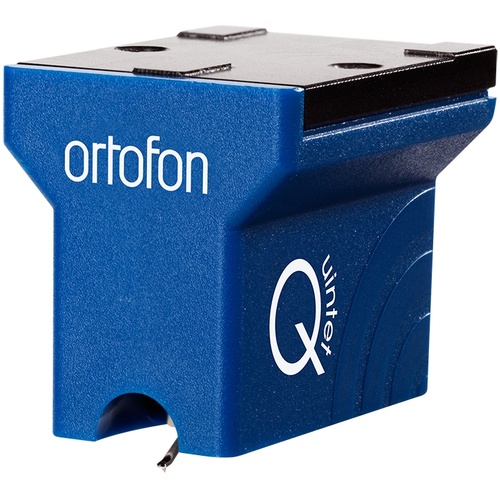

Quintet Blue moving coil cartridge

This unit has had very little use, will suit a new buyer.

The Quintet Blue is a very homogeneous cartridge whose sound image will tend to more smooth reproduction compared to Quintet Red and moderate dynamic strength compared to Quintet Bronze.

It features a Nude Elliptical diamond mounted on an aluminium cantilever.

The Quintet Blue will bring more space, depth and detail into the sound and is a very good choice for any kind of music, especially rhythmic.

Technical Data
Output voltage at 1 kHz 5 cm/sec	0.5 mV
Channel balance	< 1.5 dB
Channel separation at 1 kHz	> 21 dB
Channel separation at 15 kHz	> 14 dB
Frequency range at -3 dB	20-25.000 Hz
Frequency response 20-20.000 Hz	+/-2.5 dB
Tracking ability at 315 Hz at recommended tracking force *)	70 μm
Compliance, dynamic, lateral	15 μm/mN
Stylus type	Nude Elliptical
Stylus tip radius	r/R 8/18 μm
Tracking force range	2.1-2.5 g (21-25 mN)
Tracking force recommended	2.3 g (23 mN)
Tracking angle	20º
Internal impedance, DC resistance	7 Ohm
Recommended load impedance	>20 Ohm
Cartridge body material	ABS/Aluminium
Coil wire material	Pure 4-nines copper
Cartridge colour	Blue
Cartridge weight	9 g
*) Typical value

 Retrieve your copy of the Quintet Series brochure here »

Retrieve your copy of the MC Quintet Series Userguide here »
