PIONEER VSX-834 home theatre receiver

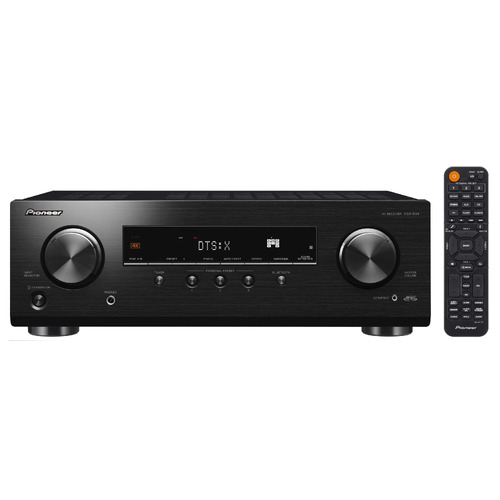

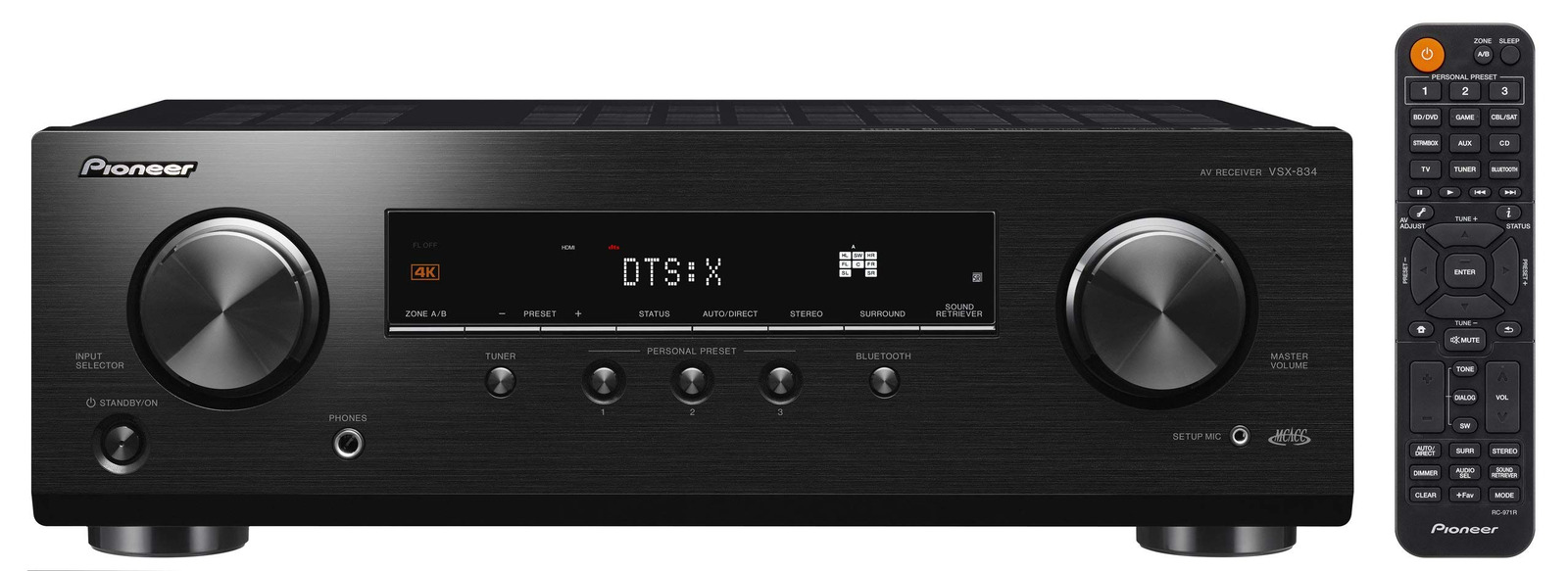

Pioneer VSX-834 7.2-Channel Dolby Atmos AV Receiver

Features

In a 15 % slimmer design than the previous model, the VSX-834 is full of easy-to-use features, including the 4K indicator, and Personal Preset and Bluetooth®Input buttons on the front panel. In addition to offering immersive sound with Dolby Atmos®and DTS:X audio formats, the AV receiver can also decode Dolby Atmos Height Virtualizer* and DTS Virtual:X, letting you experience similar virtual surround effects without using height or surround speakers. The latest video standards such as Ultra HD, HDR10, HLG, and Dolby Vision™ can be enjoyed with support for HDCP 2.3. With the Zone B feature, you can enjoy music playing in the Main Zone via wireless headphones.
*Available with future firmware update

Specifications

Amplification

Channels: 7

Amplification Type: Direct Energy

155 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)

135 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)

Audio Features

Dolby Atmos®, Dolby Surround Upmixer

DTS:X®, DTS Neural:X®Upmixer

Reflex Optimizer

Dolby Atmos Height Virtualizer*

DTS Virtual:X

Dolby®TrueHD, Dolby Digital Plus

DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTS-ES, DTS-HD Express

DSD Disc (SACD) Playback via HDMI (2.8 MHz/2ch, 5.1ch)

Digital Quad-Core 32-bit DSP (Cirrus Logic)

384 kHz/32-bit D/A Conversion with AK4438 (AKM)

Audio Return Channel (ARC) on HDMI

MCACC Auto Room Tuning

• Phase Control
• Subwoofer EQ

Advanced Sound Retriever (2ch)

Advanced Surround Modes

• Classical, Unplugged, Entertainment Show, Drama, Extended Stereo, Extended Mono, Front Stage Surround Advance



Video Features

Ultra HD Pass-through with HDCP 2.3 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)

HDR10, HLG and BT.2020 Wide Colour Gamut Signal Passthrough

Dolby Vision Compatible

Ultra HD Upscaling (1080p to 4K)

3D Ready (Blu-ray Disc™, Broadcast, and Games)

Deep Colour (36-bit), “x.v. Colour”

Convenience Features

Personal Preset

Dialog Enhancement

Bluetooth®Wireless Technology (Version: 4.2 LE, Profile: A2DP 1.2/AVRCP 1.3, Codec: SBC/AAC) Built-in

User-Friendly GUI with System Setup Menu

On-Screen Information for Audio/Video Status

Auto Power Off in HDMI Standby Through

AM/FM Tuner 40 Presets

Sleep Timer

User-Friendly Simple Remote Control

Front Terminals

MCACC Setup MIC In

Phones 1 Out

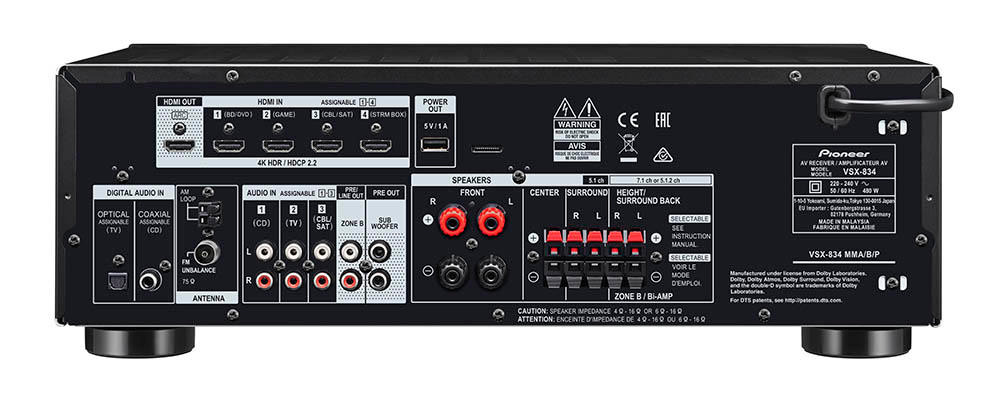

Rear Terminals

HDMI 4 In (4 Assignable)

HDMI 1 Out

USB 1 In for Streaming Dongles

Audio 3 In (Assignable)

Digital Coaxial 1 In (Assignable)

Digital Optical 1 In (Assignable)

Subwoofer 2 Pre Out

ZONE B Pre/Line Out for Wireless Headphones

Speaker 7ch Out (FRONT, CENTER, SURROUND, SURROUND BACK/HEIGHT, Bi-AMP/ZONE B)

FM/AM Antenna

Specifications

Power Requirements: AC 220-240 V, 50/60 Hz

Power Consumption/Standby: 480 W/0.2 W

Dimensions (W x H x D): 435 x 148 x 321 mm

Weight: 8 kg
