M95ED mm phono cartridge

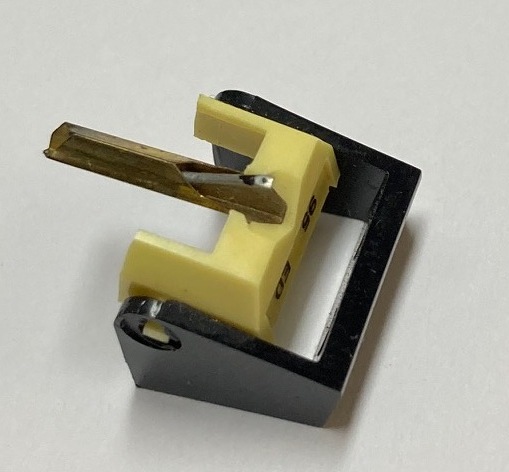

This cartridge has a near new Jico elliptical stylus assembly.

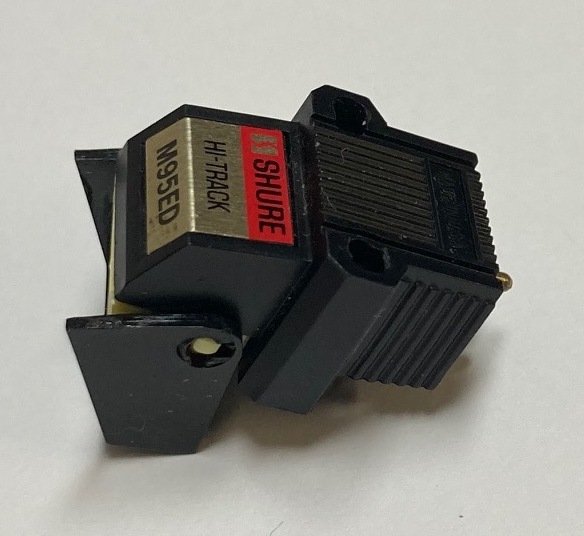

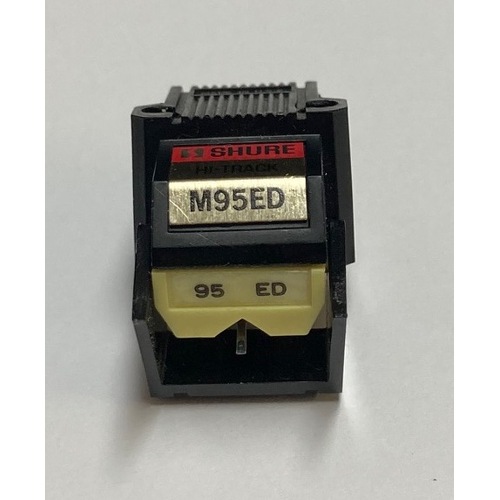

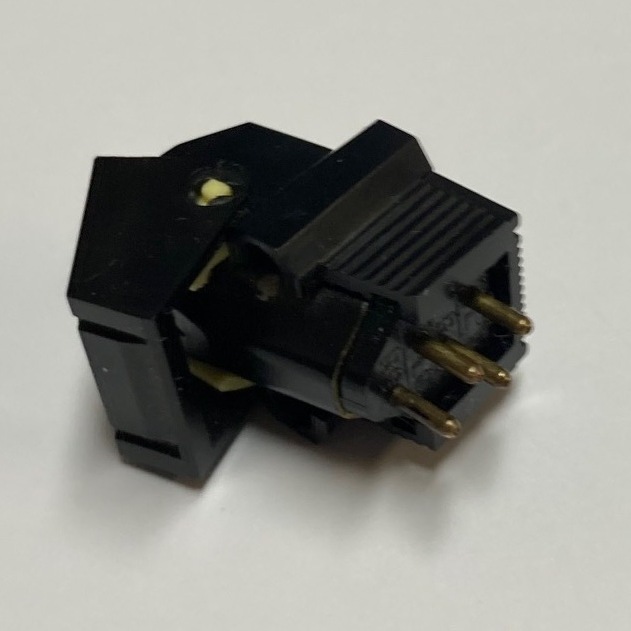

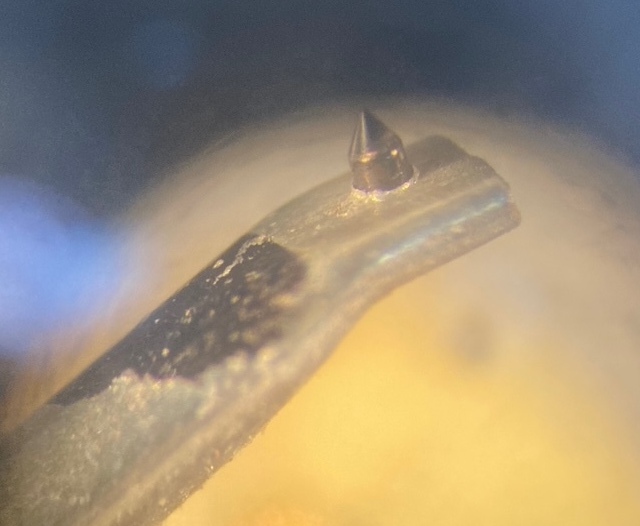

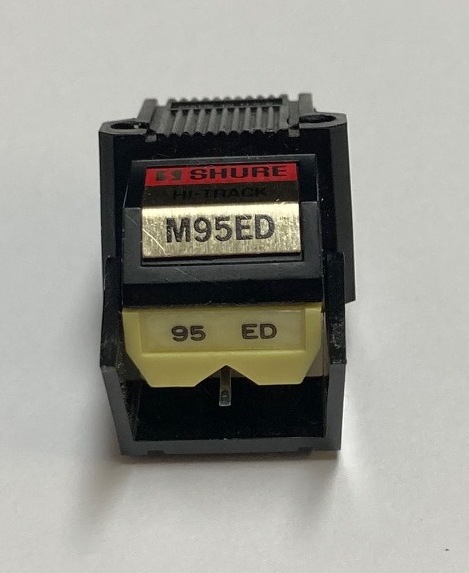

The photos are of this actual item, including the microscope image of the tip.

SPECIFICATIONS (from Shure website)

Tracking Force:
0.75 - 1.5 grams

Frequency Response:
20 - 20,000 Hz

Channel Separation:
>25dB at 1,000 Hz

Channel Balance:
Within 2 dB of each other

Output Level:
4.7mV per channel at 1,000 Hz, 5 cm/sec peak recorded velocity

Optimum Load:
47,000 ohms per channel
400 to 500 picofarads per channel

Stylus:
Elliptical 0.0007 x 0.0002 inch

Link to download page for the M95ED user guide.
