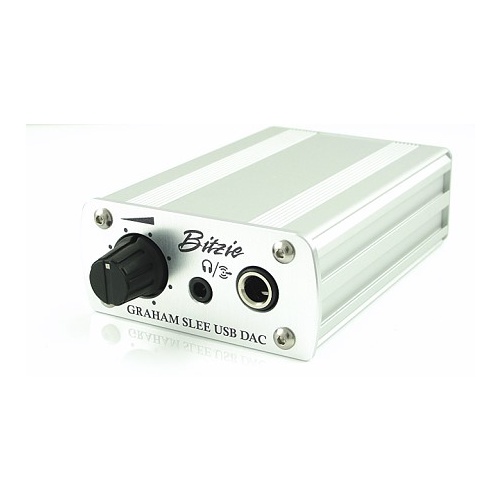

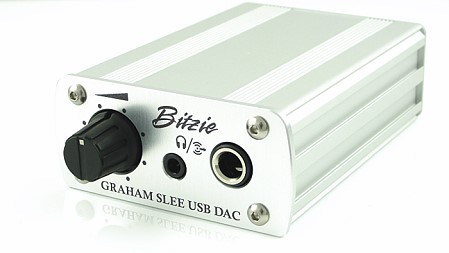

Bitzie USB DAC / Headphone Amp

Big DAC Sound—In Miniature!

(simply works with just about any USB source!)

The palm size "bus-powered" Bitzie hi-fi USB DAC will easily match the sound of much bigger DACs.

It will drive a power amplifier, active loudspeakers, and as a hi-fi USB headphone amp — headphones! Its source can be an Android device, laptop, desktop etc (and iPhone6!) — which it will instantly recognise without drivers because it's plug and play.

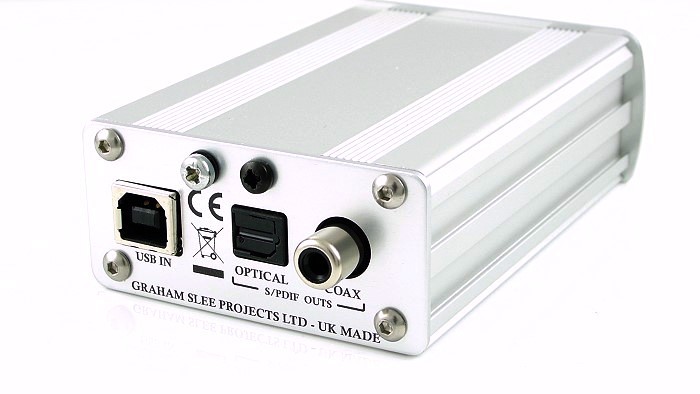

And at the same time it will convert USB to transformer-driven coax or optical S/PDIF and send to other devices — it's a hi-fi USB to optical converter and a hi-fi USB to coax converter.

And now with its optional "power wire" (available separately), it can grab its power from other 5V sources including Virgin Atlantic USB "in-seat power" or a phone charger, as well as being made to sound even better.

20 great reasons why you should choose the Bitzie USB DAC/External Sound Card...

• Plug & Play (instantly recognised by virtually all operating systems)
• No driver downloads
• Plays 44.1, 48, 88.2, 96, 176.4, 192 kHz via VLC media player, Foobar2000 or other freeware players
• 24-bit/44.1 or 48 kHz bit-perfect when running suitable software
• 16-bit/44.1 or 48 kHz S/PDIF permanently on outputs — 75 Ohm transformer isolated coax and optical "toslink" transmitter
• Full-speed USB
• Low clock jitter
• 8x oversampling Burr-Brown USB Audio CODEC
• USB powered - USB compliant 0.5W consumption

Additional superior active analogue output stage!!!

• Z-match volume control: unlike ordinary volume controls that distort above their mid-point, the z-match volume control is designed to go all the way round to match high impedance headphones.
• Analogue 3rd order Butterworth low pass filter, -1dB at 22kHz, -47dB at 352.8kHz
• 1.55V rms analogue output
• Two stereo output jacks
• Drives all headphones - low impedance and high impedance
• Drives power amplifiers direct
• True analogue rotary volume control
• Smaller than our Voyager portable headphone amplifier
• Included high quality full-size jack to stereo RCA jack adapter
• Designed and manufactured in the United Kingdom
