The Bay C5 hybrid coaxial cable (per metre)

inexpensive, high quality, general purpose

$15.00

SKU: VDHTBC51m



Calculate Shipping



Pickup from Coopers Plains - $0.00 (ETA: 1 days)
Once you have placed your order please phone to make an appointment to collect.

Due to the large success of our (discontinued) The PATCHBAY B5 in its use as a general purpose audio interconnect, we have introduced The BAY C5 HYBRID: The coaxial (unbalanced) HYBRID version of our balanced The PATCHBAY B5.





Low priced and exhibiting an excellent price-to-performance ratio The BAY C5 HYBRID has been specially designed for general purpose and car hi-fi interlink applications. The BAY C5 HYBRID however is also perfectly suited for internal (pre)amplifier and mixing console wiring applications and as an unbalanced patchbay interconnect.



The design combination of a superior transmission quality, a low conductor-conductor capacitance, a very high screening factor together with a high mechanical flexibility and a long durability, though not being easy to manage, successfully has been achieved.



The high quality conductor material used in this cable is large crystal OFC with a dense silver coating.

The BAY C5 HYBRID furthermore has been fully equipped with Linear Structured Carbon ® (LSC) saturated layers which are standard in our more expensive cable products. These layers dramatically improve transparency and imaging; By electrically bridging any metal crystal defects a stable conductivity at the lowest signal levels is obtained.

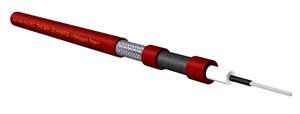

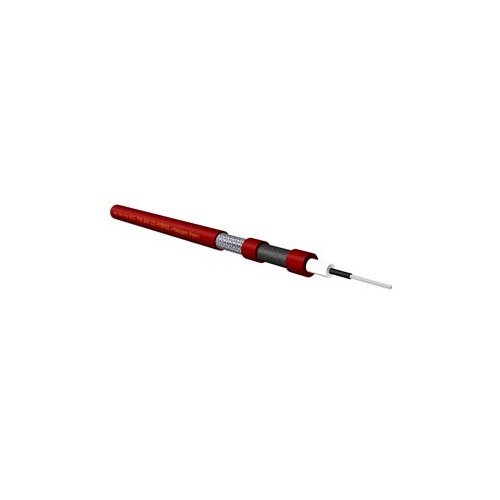

  • The coaxial construction is made with a center conductor consisting of 40 x 0.12 mm. strands exhibiting an effective cross section area of 0.452 mm² (AWG 20.6) and a resistance of 3.8 Ohm/100 meter.

  • The center conductor is coated with a layer of LSC and is insulated with foamed polyethylene.

  • The cable capacitance is 110 pF/m.

  • The double screen is made of a 16 x 6 x 0.12 mm. stranded braid with underneath a Linear Structured Carbon ® saturated layer to further close the cable against HF signals and to dramatically improve the signal quality.

  • The total resistance of the screen is 1.6 Ohm/100 meter.

  • The external 5.2 mm. diameter jacket is made of red colored HULLIFLEX ® 4, a material with superior properties compared to e.g. PVC; HULLIFLEX ® gives The BAY C5 HYBRID a very long life span without any ageing effects.

Specifications:



(VDHTBC51m)

SKU VDHTBC51m
Brand VAN DEN HUL
Shipping Weight 0.0400kg
Shipping Width 0.200m
Shipping Height 0.010m
Shipping Length 0.200m
Shipping Cubic 0.000400m3
