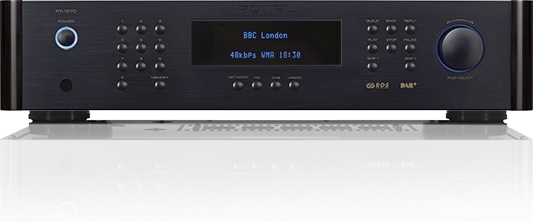

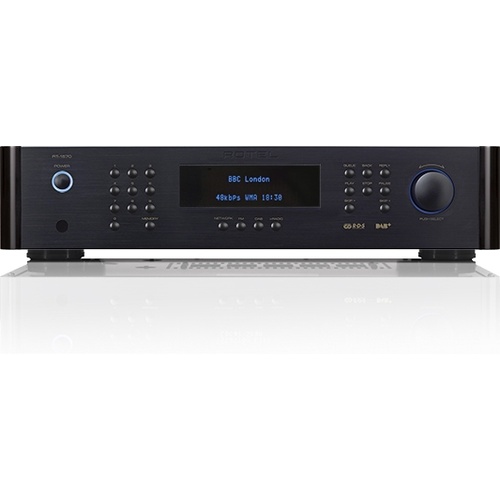

Rotel RT-1570 Network/FM/DAB+ Tuner

The RT-1570 not only offers conventional radio reception for FM and DAB stations (including DAB+ where available), but features internet radio streaming and audio playback from a media server.

Internally the RT-1570 features one of Rotel's renowned toroid transformers with separate windings for four independent power supplies: two for the DAC circuits and a third for the filter and output stages. The filter/output circuits also include slit-foil capacitors specifically developed for this model. The fourth power supply supports subsidiary circuits including the CPU and display. All of these circuits feature independent regulation and filtering as befits an audiophile product.

The Wolfson DAC offers the advantage of differential outputs to maximise performance, in conjunction with selected components for the signal path, filter circuits and output stages.

In addition to receiving FM and DAB (DAB+) stations, the RT-1570 will accept a range of audio codecs, including MP3, FLAC, and AIF, with resolution and sampling rates up to 24-bit / 96kHz. This versatility means that most internet radio services and very high-resolution audio files from your media server will be reproduced in their native format and resolution.

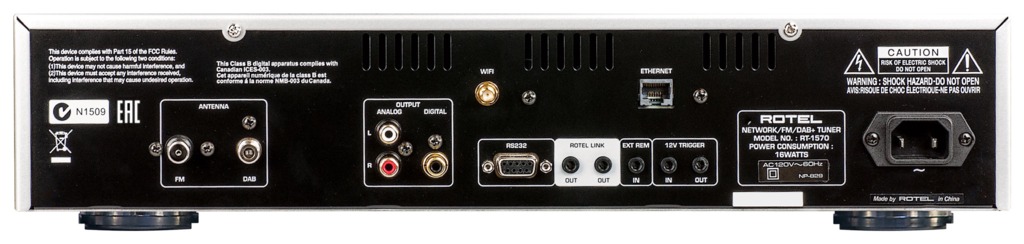

The RT-1570 can easily be incorporated into multi-room systems via RS232 and controlled with the likes of Crestron or AMX. The 'Rotel Link' is a straight-forward plug-and-play method of controlling compatible products, including our amplifiers and CD players. The RT-1570 also includes a 12V trigger for simple system on/off control.
Features:

FM/DAB+/Internet Radio with network streaming

Separate 30 preset memory banks for DAB, FM and Internet Radio stations

Audiophile Wolfson DAC converts the FM / DAB+ module's digital output to analogue for improved audio performance

Playback of high-resolution files up to 24-bit / 96kHz

High performance Rotel designed and built toroidal transformer

Wound sectional transformer to separate digital and analogue circuits for virtually noise-free audio signal paths

4 independent voltage regulator circuits for the digital and analogue circuits

Slit-foil capacitors utilised in power supply section to minimise noise and distortion

RT-1570 circuit layout and components derived from the RC-1570 pre-amplifier development

Both digital and analogue outputs are available for maximum system integration and flexibility


Specifications:



• FM Tuner
  Usable Sensitivity 50dB Quieting Sensitivity	22.2 dBf 27.2 dBf (mono)
  Signal to Noise Ratio (at 70 dBf)
  Mono Stereo	65 dBf 60 dBf
  Harmonic Distortion (at 70 dBf)
  Mono Stereo	0.2% 0.3%
  Frequency Response	10Hz - 15kHz, +/- 3dB
  Stereo Separation (100Hz/1kHz)	40dB / 30dB
  Output Level
  Line Digital	1V 0.7V
  Antenna Input	75 ohms unbalanced
  DAB Tuner
  Sensitivity	-80 dBm
  Tuning Range	Band III (174-240MHz)
  Audio Data Rate	224 Kbps (max)
  Frequency Response	20Hz - 20kHz, +/- 0.2dB
  Analogue Output	2.3V at 0 dBFs
  Antenna Input	75 ohms F connector
  General
  Network Connection	802.11 b/g
  Security	WEP, WPA1 (TKIP), WPA2 (TKIP)
  File Formats (UPnP Music Server)	AAC, MP3, WMA (except lossless), OGG vorbis, WAV, AIFF, FLAC and AU
  Power Consumption	16 Watts
  Standby Power Consumption (normal mode)	0.5 Watts
  Dimensions (W x H x D)	430 x 99 x 310mm
  Front Panel Height	2U (88.1mm)
  Weight (net)	6.33kg
