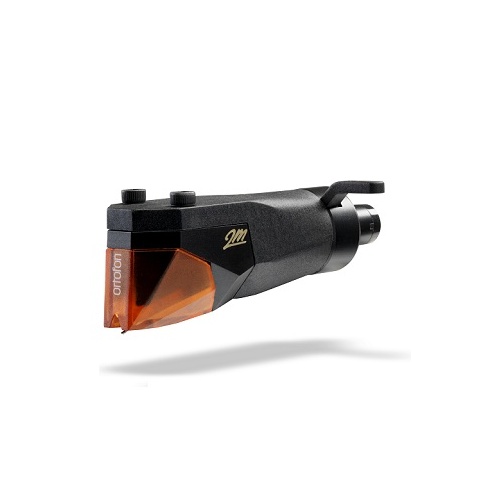

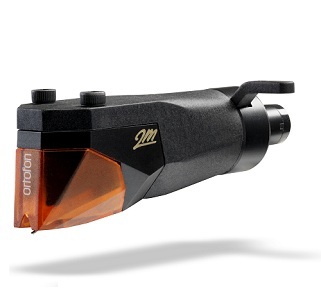

ORTOFON 2M Bronze PNP cartridge in headshell

$627.00

SKU: O2MBRC



Calculate Shipping



Pickup from Coopers Plains - $0.00 (ETA: 1 days)
Once you have placed your order please phone to make an appointment to collect.

The new 2M headshell is a practical and elegant solution for our customers who wish direct and easy mounting and replacement on their tonearm. The combination of 2M Headshell and 2M Series cartridge adds unique distinction to the turntable!



2M Headshell feautures:



  • Universal mount fitting a wide range of tonearms
  • The headshell body manufactured from a special compound used for Medical industry, ensures high rigidity while reducing unwanted vibration
  • Elegant hi-tech design
  • Length 52mm. Headshell with a 2M cartridge pre-mounted provides correct Baerwald alignment with Ortofon TA-110/210, likewise with the major part of tonearms with universal mount
  • Weight 16,9g, weight with a 2M cartridge pre-mounted 23g
  • Exclusive plug-and-play solution



All of the 2M cartridges feature diamonds which are polished to the highest standards in the industry. The 2M Red features a tipped elliptical diamond, while the 2M Blue features a nude elliptical diamond.

2M Bronze technical data

Output voltage at 1000 Hz, 5cm/sec. 5 mV
Channel balance at 1 kHz 1 dB
Channel separation at 1 kHz 26 dB
Channel separation at 15 kHz 15 dB
Frequency range at - 3dB 20-29.000 Hz
Frequency response 20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force 80 µm
Compliance, dynamic, lateral 22 µm/mN
Stylus type Nude Fine Line
Stylus tip radius r/R 8/40 µm
Tracking force range 1,4-1,7g (14-17 mN)
Tracking force, recommended 1,5 g (15 mN)
Tracking angle 20°
Internal impedance, DC resistance 1,2 kOhm
Internal inductance 630 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 150-300 pF
Cartridge colour, body/stylus Black/Bronze
Cartridge weight  7,2 g
Replacement stylus unit 2M Bronze (interchangeable with 2M Black)
Stylus protection guard 2M Bronze









(O2MBRC)

SKU O2MBRC
Brand ORTOFON
Shipping Weight 0.1000kg
Shipping Width 0.085m
Shipping Height 0.115m
Shipping Length 0.090m
