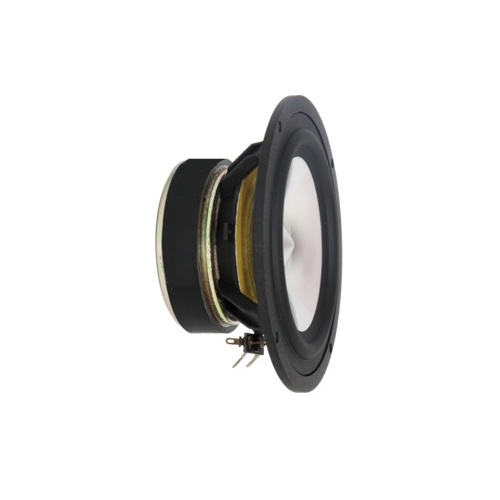

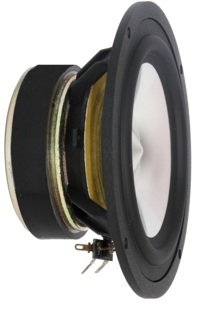

EAD E100 (JORDAN JX92) 4" metal cone wide range driver (each)

The definitive full range driver

$330.00

SKU: E100



Calculate Shipping



Pickup from Coopers Plains - $0.00 (ETA: 1 days)
Once you have placed your order please phone to make an appointment to collect.

Those who have built loudspeakers using these drivers are unanimous in their praise of the sound quality achieved.

We offer three sizes of enclosure kits to make it easy to achieve outstanding sound for the price.

The E100 code indicates that these drivers are manufactured by EAD.

Embracing a range of almost nine octaves, the E100 offers among the widest bandwidth of any single drive unit available.

This not only provides an exceptionally smooth, high-definition, crossover-free sound quality but allows for a very diverse range of applications.

The E100 can be successfully used with all types of enclosures including closed or vented boxes, transmission lines and horn loaded designs.

It is eminently suitable for professional near-field monitors, high quality domestic hi-fi, home cinema and custom installations. Optionally the unit is magnetically screened, enabling it to be used in close proximity. (The shield is a separate item that can be added at any time.)

The definitive full range driver. Frequency range 40 - 20kHz.   Cone diameter 92mm. Chassis 140mm diameter.

A feature of the JX92 is its 'designer' tailored polar response. The axial response above 2kHz exhibits a linear rise. The response at 30 degrees off-axis shows a complementary fall. The power response, therefore, is substantially level. If the loudspeakers are positioned so that the axes cross well in front of the listening area, this achieves remarkable stereo imagery.



Note: price is for EACH driver.













(E100)

SKU E100
Brand EJ JORDAN
Shipping Weight 1.0600kg
Shipping Width 0.160m
Shipping Height 0.080m
Shipping Length 0.150m
Shipping Cubic 0.001920m3

1 Year Warranty
